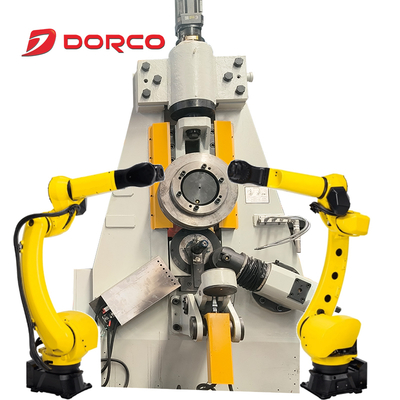

Automated Ring Rolling Machine for 5-10KG Forged Rings 240pcs/hour

Our automated production line for ring rolling machines is optimized for mass production of 5KG-10KG forged rings. The system features a 650KW continuous induction heating furnace for fast, uniform heating, an efficient 400T closed press with three-station design, and a 250E CNC ring rolling machine for precision manufacturing, achieving a maximum production capacity of 240 pieces/hour.

• Slide table with single-axis robot for bar transfer from heating furnace to press upsetting station
• Flat four-axis robot for workpiece transfer between three press workstations
• Single-axis robots with ejector devices and transition tables for unloading at press workstations
• Dual robot mobile platform for automatic ring rolling machine loading/unloading
• KUKA210 robot for ring component loading, unloading, and palletizing
• Automation auxiliary equipment including waste conveying system
• Mold cooling and cleaning device
• Raw material cooling conveyor line
• Stacking pallets and complete material handling system

The system includes comprehensive monitoring with real-time production indicators and equipment efficiency analysis through a visual dashboard for clear operational oversight.

Ideal for producing high-demand 5KG-10KG circular forgings including wind power equipment bearing rings, heavy-duty machinery slewing rings, and rail transit wheel hubs.

We offer fully customized automatic ring rolling machines with capabilities including automatic loading/unloading, rolling parameter adjustment, and ring quality detection for complete production process automation.
