Fully Automatic Ring Rolling Machine for 5KG-10KG Forged Rings

MOQ: 1 Set
Price: 14000-147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
Duolek
Model Number
ZDH
Name:
Fully Automatic Ring Rolling Machine
Forged Rings:
5KG-10KG
Name:
Vertical Ring Rolling Machine Automated Production Line
Robot:
KUKA210 Robot
Equipment Advantages:
Unmanned Automatic Operation
Max. Output:
240 Pieces/hour
Highlight:

fully automatic ring rolling machine

,

5KG-10KG forged ring machine

,

ring rolling machine with warranty

Product Description
Customizable Ring Rolling Machine 240 Pieces / Hour Automatic Loading And Unloading
Attribute Value
Name Fully automatic ring rolling machine
Forged rings 5KG-10KG
Name Vertical Ring Rolling Machine Automated Production Line
Robot KUKA210 Robot
Equipment advantages Unmanned Automatic Operation
Max. output 240 Pieces/hour
Product Overview
Our integrated ring rolling machine automated production line delivers efficient and precise manufacturing of 5KG-10KG forged rings. The system features a 650KW continuous induction heating furnace for high-quality heating, a 400T closed press (three stations) for improved pre-forming efficiency, and a 250E CNC ring rolling machine to ensure final forming accuracy, achieving a maximum production capacity of 240 pieces per hour.
Key Features
  1. Single-axis robot slide table transfers bars from heating furnace to press upsetting station
  2. Flat four-axis robot handles workpiece transfer between three press workstations
  3. Single-axis robots with ejector devices manage unloading at press workstations
  4. Dual robot mobile platform enables automatic ring rolling machine loading/unloading
  5. KUKA210 robot handles ring component loading, unloading, and palletizing
  6. Includes automation auxiliary equipment: waste conveying system
  7. Integrated mold cooling and cleaning system
  8. Raw material cooling conveyor line
  9. Complete with stacking pallets and material handling solutions
The system features comprehensive monitoring with real-time production indicators and equipment efficiency analysis through a visual dashboard for clear operational oversight.
Applications
Ideal automation solution for high-demand circular forgings including wind power equipment bearing rings, heavy-duty machinery slewing rings, and rail transit wheel hubs in the 5KG-10KG range.
Customization Options
We provide specialized ring rolling process customization based on your specific requirements for shape, size, and accuracy. Whether producing simple circular rings or complex shaped components, our engineering team designs optimal rolling processes to meet your exact production needs.

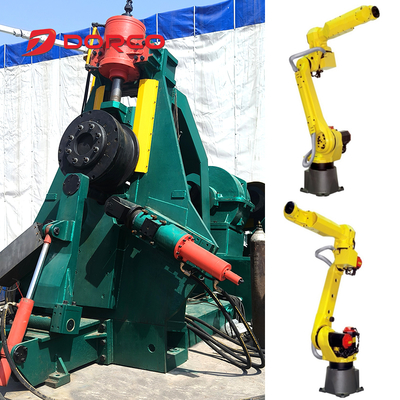

Fully Automatic Ring Rolling Machine for 5KG-10KG Forged Rings 0 Fully Automatic Ring Rolling Machine for 5KG-10KG Forged Rings 1
