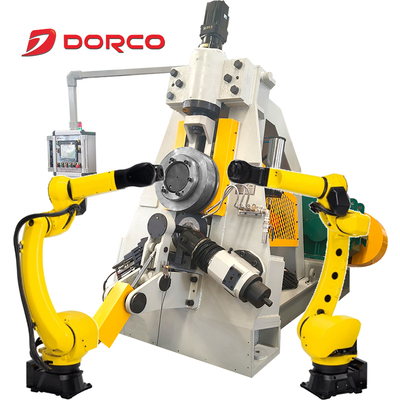

KUKA210 Robot Automated Ring Rolling Machine for 5-10KG Forged Rings

MOQ:	1 Set
Price:	14000-147000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45-75 Working Days
Payment Method:	L/C,T/T

Details Information

Product Description

Detail Information

Brand Name

Duolek

Model Number

ZDH

Saving Labors:

Automatic Counting, Automatic Detection, Automatic Weighing, And Automatic Ornament Placement

Forged Rings:

5KG-10KG

Robot:

KUKA210 Robot

Equipment Advantages:

Unmanned Automatic Operation

Max. Output:

240 Pieces/hour

Name:

Vertical Ring Rolling Machine Automated Production Line

Highlight:

5-10KG automated ring rolling machine

forged ring rolling machine

KUKA210 robot ring roller

Product Description

KUKA210 Robot Integrated Circle Ring Rolling Machine For Forged Rings 5-10KG

Product Specifications

Attribute	Value
Automation Features	Automatic Counting, Automatic Detection, Automatic Weighing, Automatic Ornament Placement
Forged Ring Capacity	5KG-10KG
Robot System	KUKA210 Robot
Equipment Advantages	Unmanned Automatic Operation
Maximum Output	240 Pieces/hour
System Type	Vertical Ring Rolling Machine Automated Production Line

Product Overview

Our high-performance ring rolling machine automated production line is designed for efficient manufacturing of 5KG-10KG forged rings. The system includes a 650KW continuous induction heating furnace for uniform rapid heating, a 400T closed press with innovative three-station design for improved efficiency, and a 250E high-precision CNC ring rolling machine, delivering a theoretical maximum output of 240 pieces/hour.

Key Features

Single-axis robot slide table for bar transfer from heating furnace to press upsetting station
Flat four-axis robot for workpiece transfer between three press workstations
Single-axis robots with ejector devices and transition tables for unloading at press workstations
Dual robot mobile platform for automatic ring rolling machine loading/unloading
KUKA210 robot system for ring component handling and palletizing
Comprehensive automation support including waste conveying system
Integrated mold cooling and cleaning system
Raw material cooling conveyor line
Complete stacking pallet system

Applications

Ideal for automated, large-scale production of 5KG-10KG precision ring forgings used in wind power systems, engineering machinery, bearings, gears, and various transmission systems.

Customization Options

We offer customized fully automatic ring rolling machines with advanced automation capabilities including automatic loading/unloading, rolling parameter adjustment, and ring quality detection, enabling complete automated control of the entire production process.

Tags:

Products

MOQ:	1 Set
Price:	14000-147000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45-75 Working Days
Payment Method:	L/C,T/T

Detail Information

Product Description

Detail Information

Brand Name

Duolek

Model Number

ZDH

Saving Labors:

Automatic Counting, Automatic Detection, Automatic Weighing, And Automatic Ornament Placement

Forged Rings:

5KG-10KG

Robot:

KUKA210 Robot

Equipment Advantages:

Unmanned Automatic Operation

Max. Output:

240 Pieces/hour

Name:

Vertical Ring Rolling Machine Automated Production Line

Minimum Order Quantity:

1 Set

Price:

14000-147000 USD Per Set

Packaging Details:

After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.

Delivery Time:

45-75 Working Days

Payment Terms:

L/C,T/T

Highlight

5-10KG automated ring rolling machine

forged ring rolling machine

KUKA210 robot ring roller

Product Description

KUKA210 Robot Integrated Circle Ring Rolling Machine For Forged Rings 5-10KG

Product Specifications

Attribute	Value
Automation Features	Automatic Counting, Automatic Detection, Automatic Weighing, Automatic Ornament Placement
Forged Ring Capacity	5KG-10KG
Robot System	KUKA210 Robot
Equipment Advantages	Unmanned Automatic Operation
Maximum Output	240 Pieces/hour
System Type	Vertical Ring Rolling Machine Automated Production Line

Product Overview

Key Features

Single-axis robot slide table for bar transfer from heating furnace to press upsetting station
Flat four-axis robot for workpiece transfer between three press workstations
Single-axis robots with ejector devices and transition tables for unloading at press workstations
Dual robot mobile platform for automatic ring rolling machine loading/unloading
KUKA210 robot system for ring component handling and palletizing
Comprehensive automation support including waste conveying system
Integrated mold cooling and cleaning system
Raw material cooling conveyor line
Complete stacking pallet system

Applications

Ideal for automated, large-scale production of 5KG-10KG precision ring forgings used in wind power systems, engineering machinery, bearings, gears, and various transmission systems.

Customization Options
