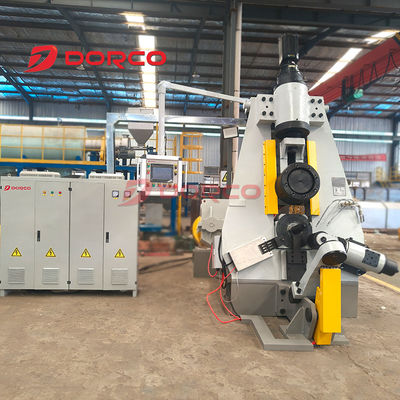

Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51K
Cooling System:
Water
Nominal Outer Diameter Of Grinding Ring:
160 -1300 Mm
Main Transmission Mode:
Hydraulic / Pneumatic Device
Safety Features:
Emergency Stop Button, Safety Protection Device, Overload Protection
Ring Rolling Height:
40 -300 Mm
Radial Rolling Force（KN）:
50 - 800 KN
Highlight:

Precision CNC Ring Rolling Machine

,

Multi-Specification Ring Rolling Machine

,

Large Capacity Ring Rolling Machine

Product Description
Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity
Key Specifications
Attribute Value
Cooling system Water
Nominal outer diameter of grinding ring 160 - 1300 mm
Main transmission mode Hydraulic / Pneumatic Device
Safety features Emergency Stop Button, Safety Protection Device, Overload Protection
Ring rolling height 40 - 300 mm
Radial rolling force (KN) 50 - 800 KN
Product Overview

The D51K CNC vertical ring rolling mill is an advanced equipment for efficient and precise ring rolling. Its hydraulic or pneumatic main transmission adapts flexibly to diverse production needs.

With powerful radial rolling capacity (50-800 KN), this machine handles ring rolling tasks across various materials and sizes, from small workpieces to large-scale industrial production.

The equipment offers a processing range of 40 to 300 millimeters in ring height, providing exceptional flexibility to meet various design specifications and requirements.

Safety Features
  • Emergency stop button for immediate shutdown
  • Comprehensive safety protection devices
  • Overload protection for equipment stability
Performance Advantages
  • Special rolling process optimization for uniform ring structure
  • Enhanced strength, hardness, and fatigue resistance
  • Ideal for high-performance ring requirements
Technical Components

The ring rolling machine includes: main transmission box, body, main roller slider, centering mechanism, measuring device, hydraulic system, hydraulic pipeline, control system, lubrication system, cooling system, and foundation.

Technical Parameters
Model DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H) DRC-D51K(H)
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Range of outer diameter (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Ring rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Linear rolling speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder stroke (mm) 50 100 110 130 150 200 250 250 350
Applications

The CNC vertical ring rolling machine is widely used in manufacturing high-performance annular forgings for:

  • Bearings, gears, and flanges (including flat welding and large diameter flanges)
  • Thin-walled cylindrical parts and various connecting/transmission components
  • Materials including high-temperature alloy steel, bearing steel, carbon steel, copper, and aluminum

Its near net forming capability, excellent performance, high precision, and efficiency make it essential in industries such as machinery manufacturing, automotive, wind power, aerospace, shipbuilding, petrochemicals, and engineering machinery.

Customization & Support

We provide comprehensive service support from pre-project consultation through installation, debugging, and maintenance. Our customized solutions include close client communication to promptly address challenges and ensure project success.

Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity 0 Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity 1 Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity 2
