D51Y Vertical Ring Rolling Machine For Rolling Various Metal Materials High Precision

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Ring Rolling Height:
40 -300mm
Rolled Material:
Can Roll Various Metal Materials
Warranty Period:
1 Year
Model:
Multiple Specifications To Choose From
Main Transmission Mode:
Hydraulic / Pneumatic Device
Power Source:
Electric
Highlight:

Various Metal Materials Rolling Machine

,

Metal Materials Ring Rolling Machine

,

High Precision Rolling Machine

Product Description
D51Y Vertical Ring Rolling Machine For Rolling Various Metal Materials High Precision
Product Overview

The D51Y series vertical ring rolling machine developed by DORCO is an advanced equipment for the hot rolling and expanding process of circular rough blanks. Designed for precision manufacturing of high-performance annular forgings, this machine excels in processing non-welded ring parts including bearings, flanges, and thin-walled cylindrical components.

Key Specifications
Attribute Value
Ring rolling height 40 - 300mm
Rolled material Various metal materials
Warranty period 1 Year
Model Multiple specifications available
Main transmission mode Hydraulic/Pneumatic device
Power source Electric
Technical Features
Fixed rolling wheel system with high axial positioning accuracy
Reliable lower support shaft connection for easy replacement
Constructed with cast steel and high-quality alloy steel components
Precision rolling mechanism with synchronous belt transmission
Optimized spindle bearing distribution for high rotational accuracy
Compact structure with standard reducer and Y-shaped motor
Noise reduction through compressed air muffler system
Technical Parameters
Model DRC-D51Y(H) 160 250 350 450 550 800 1000 1200 1300
DRC-D51Y(P) 160 250 350 / / / / / /
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling diameter range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Linear rolling speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder stroke (mm) 50 100 110 130 150 200 250 250 350
Applications

The D51Y vertical ring rolling machine is essential for manufacturing high-precision annular components in various industries including:

Bearing production
Gear manufacturing
Flange production (flat welding and large diameter)
Thin-walled cylindrical parts
Connecting and transmission components

With excellent material adaptability (alloy steel, carbon steel, copper, aluminum) and process advantages (near net forming, high precision, efficiency), it serves industries like automotive, aerospace, shipbuilding, petrochemicals, and wind power.

Product Gallery

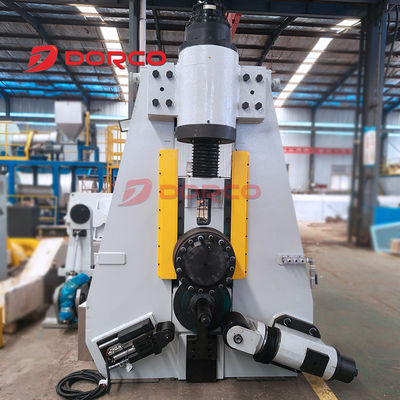

D51Y Vertical Ring Rolling Machine For Rolling Various Metal Materials High Precision 0 D51Y Vertical Ring Rolling Machine For Rolling Various Metal Materials High Precision 1 D51Y Vertical Ring Rolling Machine For Rolling Various Metal Materials High Precision 2
Support & Services

We provide comprehensive support including pre-project consultation, equipment installation, debugging, and maintenance. Our team maintains close communication throughout the implementation process to ensure smooth project execution and prompt problem resolution.
