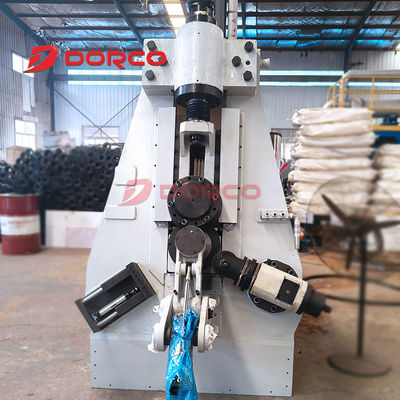

D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Rolled Material:
Can Roll Various Metal Materials
Ring Rolling Height:
40 - 300mm
Model:
Multiple Specifications To Choose From
Main Transmission Mode:
Hydraulic / Pneumatic Device
Warranty Period:
1 Year
Power Source:
Electric
Highlight:

130mm Ring Rolling Machine

,

250 Vertical Ring Rolling Machine

,

Small Footprint Ring Rolling Machine

Product Description
D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm
Product Overview

The D51Y vertical ring rolling machine is a high-performance CNC rolling equipment designed for efficient and high-precision production of metal rings in demanding industrial environments.

Key Specifications
Attribute Value
Rolled Material Various Metal Materials
Ring Rolling Height 40 - 300mm
Model Multiple Specifications Available
Main Transmission Mode Hydraulic/Pneumatic Device
Warranty Period 1 Year
Power Source Electric
Core Advantages
  • Wide Material Adaptability: Capable of rolling steel, aluminum, and other common metals with excellent versatility
  • Flexible Size Range: Ring rolling height up to 130mm for precision small ring components
  • Multiple Configurations: Various specifications available to match production requirements
  • Superior Rigidity: Withstands high-intensity pressure while maintaining machining accuracy
  • Precision Operation: Sensitive controls allow for quick adjustments
  • Advanced Design: Rectangular cross-section for optimal force distribution and extended equipment life
  • Quality Assurance: Each unit undergoes strict inspection and debugging before delivery
Technical Parameters
Model DRC-D51Y(H) 160 250 350 450 550 800 1000 1200 1300
DRC-D51Y(P) 160 250 350 / / / / / /
Nominal Outer Diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling Ring Outer Diameter Range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Ring Rolling Height (mm) 40 130 160 230 300 200 200 200 300
Radial Rolling Force (KN) 50 150 300 500 550 550 800 800 800
Linear Rolling Speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder Stroke (mm) 50 100 110 130 150 200 250 250 350
Applications

The vertical ring rolling machine is essential for manufacturing high-performance annular forgings, including:

  • Bearings and gears
  • Flanges (especially flat welding and large diameter types)
  • Thin-walled cylindrical parts
  • Various connecting and transmission components

With its material adaptability (high-temperature alloy steel, bearing steel, carbon steel, copper, aluminum) and process advantages (near net forming, high precision, efficiency), it serves industries including machinery manufacturing, automotive, wind power, aerospace, shipbuilding, petrochemicals, and engineering machinery.

Support & Services

We provide comprehensive support from project consultation through installation, debugging, and maintenance. Our team maintains close communication with clients to ensure smooth project implementation and prompt problem resolution.

D51Y - 250 Vertical Ring Rolling Machine Small Footprint Ring Rolling Height 130mm 0
