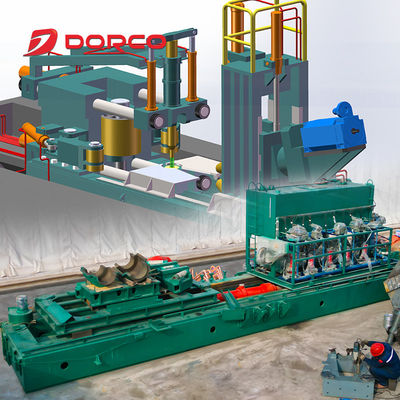

D53KF2000 Horizontal Ring Rolling Machine Customization Large Size High Precision

MOQ: 1 Set
Price: 25000 - 493000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D53KF
Range Of Outer Diameter Of Rolling Ring:
400 - 2000Mm（ D53KF - 2000 ）
Ring Rolling Height:
60 - 400 Mm（ D53KF - 2000 ）
Overall Dimensions:
13050 X 3050 X 3850 Mm（ D53KF - 2000 ）
Rolled Material:
Can Roll Various Metal Materials
Advantage:
Radial And Axial Composite Rolling Function
Control System:
CNC
Highlight:

Large Size ring rolling mill

,

Customization Horizontal Ring Rolling Machine

,

High Precision ring rolling mill

Product Description
D53KF2000 Horizontal Ring Rolling Machine Customization Large Size High-Precision
Key Specifications
Range of outer diameter of rolling ring 400 - 2000Mm（D53KF-2000）
Ring rolling height 60 - 400 Mm（D53KF-2000）
Overall dimensions 13050 X 3050 X 3850 Mm（D53KF-2000）
Rolled material Various Metal Materials
Key Advantage Radial And Axial Composite Rolling Function
Control System CNC
Product Overview

The D53KF CNC series horizontal ring rolling machine features an excellent structure with digital program control, offering high automation, production efficiency, and material/energy saving advantages. This series combines radial and axial bi-directional composite rolling functions, making it ideal for processing large seamless rings.

Key Features
  • Full process automation with high-precision CNC system
  • Radial and axial conformity rolling for precise coordination
  • Electronic handwheel operation with dual-screen monitoring
  • Automatic CAR operation mode matching rolling parameters
  • Wide material compatibility including carbon steel, stainless steel, and titanium alloys
  • Energy-saving servo drive and hydraulic system
  • Modular structure for easy maintenance

This machine is widely used in aerospace, aviation, shipbuilding, nuclear power, wind power generation, petrochemicals, and power energy industries.

Technical Parameters
Model DRC-D53KF 350 DRC-D53KF 450 DRC-D53KF 600 DRC-D53KF 800 DRC-D53KF 1200 DRC-D53KF 1600 DRC-D53KF 2000 DRC-D53KF 2500 DRC-D53KF 3500
Nominal outer diameter (mm) 350 450 600 800 1200 1600 2000 2500 3500
Rolling diameter range (mm) 160-350 180-450 200-600 300-800 300-1200 400-1600 400-2000 500-2500 700-3500
Rolling height (mm) 50-150 50-200 50-250 60-250 60-300 60-350 60-400 50-500 80-600
Radial rolling force (KN) 350 450 630 1000 1250 1600 2000 2500 3000
Axial rolling force (KN) 200 350 500 800 1000 1250 1600 2000 2500
Linear rolling speed (m/s) 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Radial motor power (Kw) 90 110 132 160 250 280 355 2*280 2*315
Axial motor power (Kw) 55 55 90 2*75 2*110 2*160 2*220 2*280 2*315
Overall dimensions (mm) 6750×2000×3400 6950×2150×3450 7050×2050×3500 8550×2250×3500 9050×2450×3550 11050×2550×3650 13050×3050×3850 14050×3550×4380 17050×3850×4550
