Energy Conservation Horizontal Ring Rolling Mill Machine Large Processing Range Automated Control

MOQ:	1 Set
Price:	25000 - 493000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45-75 Working Days
Payment Method:	L/C,T/T

Details Information

Product Description

Detail Information

Brand Name

DORCO

Model Number

D53KT

Cooling System:

Water Cooling

Application:

Large Size, High-precision Ring Processing

Warranty:

1 Year

Equipment Size:

Customized According To The Model

Security Features:

Emergency Stop Button, Safety Protection Device, Overload Protection

Advantage:

Dual Directional Composite Rolling Function

Highlight:

Large Horizontal ring rolling mill

Automated ring rolling mill

Automated horizontal ring rolling machine

Product Description

Energy Conservation Horizontal Ring Rolling Machine Large Processing Range Automated Control

Product Overview

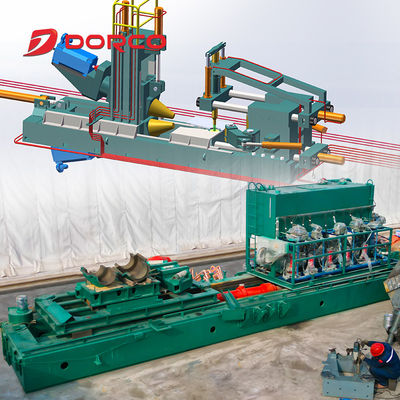

The D53KT series CNC radial axis rolling machine is one of DORCO Heavy Industries' mature products, designed specifically for rolling large ring parts. It combines radial and axial rolling capabilities to ensure dimensional accuracy and quality for large ring components.

Key Features

Dual Directional Composite Rolling Function for precise forming
Electronic handwheel operation with digital control panel
Horizontal layout with high-strength body structure for stability
Compatible with various materials (carbon steel, alloy steel, stainless steel)
Handles different cross-sectional shapes (circular, irregular)
Supports non-standard customization and function expansion
Automated data recording for production logs and process parameters
Comprehensive safety features including overload protection
Energy-saving drive control with servo motors

Technical Specifications

Model	DRC-D53KT 800	DRC-D53KT 1200	DRC-D53KT 1600	DRC-D53KT 2000	DRC-D53KT 2500	DRC-D53KT 3500	DRC-D53KT 4000
Nominal outer diameter (mm)	800	1200	1600	2000	2500	3500	4000
Rolling diameter range (mm)	300-800	300-1200	400-1600	400-2000	500-2500	700-3500	800-4000
Rolling height (mm)	60-250	60-300	60-350	60-400	80-500	80-600	80-700
Radial rolling force (KN)	1000	1250	1600	2000	2500	3000	3000
Axial rolling force (KN)	800	1000	1250	1600	2000	2500	2500
Linear rolling speed (m/s)	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Radial motor power (Kw)	160	250	280	355	2*280	2*315	2*355
Axial motor power (Kw)	2*75	2*110	2*160	2*220	2*280	2*315	2*355
Overall dimensions (mm)	8580×2280×3500	9050×2450×3550	11050×2580×3680	13080×3080×3880	14080×3580×4380	17080×3880×4580	18100×4250×4650

Extended Model Specifications

Model	DRC-D53KT 5000	DRC-D53KT 6000	DRC-D53KT 6300	DRC-D53KT 7000	DRC-D53KT 8000	DRC-D53KT 9000	DRC-D53KT 10000
Nominal outer diameter (mm)	5000	6000	6300	7000	8000	9000	10000
Rolling diameter range (mm)	800-5000	800-6000	1000-6300	1000-8000	1100-8000	1100-9000	1200-10000
Rolling height (mm)	80-800	80-800	100-1000	100-1200	100-1600	110-1600	120-1650

Product Attributes

Cooling System	Water Cooling
Application	Large Size, High-precision Ring Processing
Warranty	1 Year
Equipment size	Customized According To The Model
Security features	Emergency Stop Button, Safety Protection Device, Overload Protection
Advantage	Dual Directional Composite Rolling Function

This CNC radial axis rolling machine provides a reliable foundation for high-precision ring forming, adapting to long-term high-intensity production needs while maintaining energy efficiency and operational safety.
