Advanced Automatic Alarm Device Spiral Weld Pipe Mill Steady Operation

MOQ: 1 Set
Price: 200000 - 1190000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45 - 75 Working Days
Payment Method: ,L/C,T/T
Detail Information
Product Description
Detail Information
Brand Name
Duolek
Model Number
LXHGJ
Specification(mm）:
φ 508 - φ 1820（DRC-1800）
Area(m2）:
24 X 180（DRC-1800）
Model:
DRC - 1800
Thickness(mm）:
8 - 25.4（DRC-1800）
Coil Weight (ton):
30T（DRC-1800）
Coil Width(mm）:
1200 - 1600（DRC-1800）
Highlight:

Automatic Alarm spiral pipe mill

,

Advanced spiral weld pipe mill

,

Steady spiral weld pipe mill

Product Description
DRC-1800 Spiral Weld Pipe Mill - Automatic Production with Steady Operation
Key Specifications
Attribute Value
Specification (mm) φ508 - φ1820
Area (m²) 24 × 180
Model DRC-1800
Thickness (mm) 8 - 25.4
Coil weight (ton) 30T
Coil width (mm) 1200 - 1600
Advanced Spiral Pipe Production System
The DRC-1800 spiral welded pipe mill is a high-performance industrial solution designed for efficient production of precision spiral welded pipes. This automated system combines forming and welding processes to deliver consistent quality with minimal downtime.
Production Highlights
  • Handles 30-ton steel coils for continuous operation
  • 24 × 180 m² footprint for large-scale production
  • Automated processes from coil feeding to final inspection
  • Precision control systems for consistent quality
Material Processing
Utilizes strip steel coils, welding wire, and flux with rigorous pre-production inspections. Features include:
  • Strip steel leveling, trimming, and surface preparation
  • Single/double wire submerged arc welding for connections
  • Electric contact pressure gauge for smooth material transport
  • External/internal control roller molding options
Integrated Testing & Quality Control
Hydrostatic Testing Machine
Computer-controlled pressure testing system (10-110MPa) for pipes from Φ20 to Φ3500mm. Process includes:
  • Automatic pipe loading and connection
  • Precision pressure control and monitoring
  • Data recording and reporting capabilities
Flat Head Chamfering Machine
End processing system for pipes (20mm-3500mm diameter) meeting API-5L, ASTM, and other international standards.
Non-Destructive Testing
  • Ultrasonic flaw detection with automatic marking
  • X-ray inspection with automatic weld recognition
  • Comprehensive defect repair and verification process
Technical Specifications
Model Specification (mm) Coil Weight (ton) Coil Width (mm) Thickness (mm) Capacity (KW) Area (m²)
DRC-400 φ219-φ426 10 400-750 5-8 150 18×72
DRC-500 φ219-φ529/φ720 15 400-800 5-10 180 18×72
DRC-600 φ219-φ630 15 450-1050 6-10 190 21×72
DRC-700 φ219-φ720 15 500-1250 5-12.7 210 21×72
DRC-800 φ219-φ820 20 500-1300 6-12.7 220 24×78
DRC-1000 φ219-φ1020 20 500-1560 6-12.7 220 24×78
DRC-1400 Φ325-φ1420 25 500-1560 6-18 400 24×120
DRC-1600 Φ426-φ1620 30 1100-1600 6-20 400 24×120
DRC-1800 φ508-φ1820 30 1200-1600 8-25.4 500 24×180
DRC-2000 φ508-φ2020 30 1200-2000 8-25.4 550 24×180
DRC-2400 φ508-φ2400 30 1200-2000 8-25.4 600 24×200
DRC-3000 φ508-φ3000 30 1200-2000 8-25.4 700 24×200
Industrial Applications
The spiral welded pipe production system serves diverse industrial needs including:
  • High/low pressure fluid transport pipelines
  • Urban construction piling pipes
  • Industrial structural piping systems
  • Power, heat, and gas distribution networks
Technical Support & Services
  • Professional installation and setup assistance
  • Comprehensive operator and maintenance training
  • Diagnostic and troubleshooting support
  • Preventive maintenance and repair services
Product Images

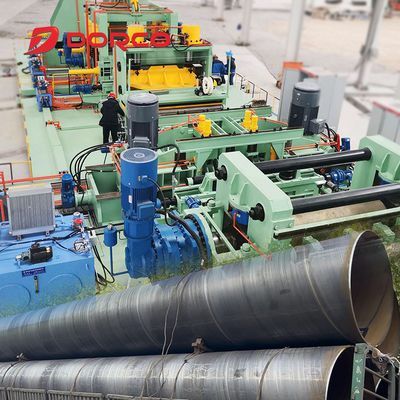

Advanced Automatic Alarm Device Spiral Weld Pipe Mill Steady Operation 0 Advanced Automatic Alarm Device Spiral Weld Pipe Mill Steady Operation 1 Advanced Automatic Alarm Device Spiral Weld Pipe Mill Steady Operation 2 Advanced Automatic Alarm Device Spiral Weld Pipe Mill Steady Operation 3
