D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Model:
D51Y 800
Cooling System:
Water
Control System:
Hydraulic Control
Nominal Outer Diameter Of Grinding Ring:
800 Mm
Range Of Outer Diameter Of Rolling Ring:
400 - 800 Mm
Radial Rolling Force:
550 KN
Product Description
D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation
Product Specifications
Model D51Y 800
Cooling system Water
Control system Hydraulic Control
Nominal outer diameter of grinding ring 800 mm
Range of outer diameter of rolling ring 400 - 800 mm
Radial rolling force 550 KN
Product Overview

The D51Y series vertical ring rolling machine developed by DORCO is an ideal solution for hot rolling and expanding processes of circular rough blanks. This equipment is primarily used for processing non-welded ring parts including bearings, flat welding flanges, high diameter flanges, and small thin-walled barrel components. It seamlessly integrates with the forging process after upsetting and punching operations.

Key Features
  • Incorporates mature technology with every detail carefully designed and rigorously inspected for reliable performance
  • Features a ring expansion fixed rolling wheel system with high axial positioning accuracy
  • Simplified mechanical processing of rolling wheel with reliable connection system
  • Main components constructed from cast steel and high-quality alloy steel with proper heat treatment
  • Welded steel plate construction for bed and base ensures good rigidity with lightweight design
  • Comprehensive operational testing and precision inspection before delivery
Technical Parameters
Model 160 250 350 450 550 800 1000 1200 1300
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling diameter range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Ring rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Applications

Widely used in hot rolling of annular blanks for bearing forging, automotive gear, and flange manufacturing industries. Compatible with automated production lines to significantly increase efficiency, improve component quality, and reduce labor costs.

Product Images

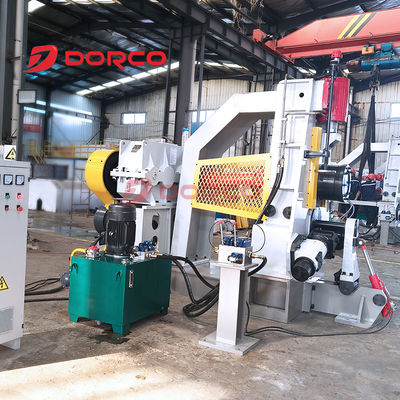

D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation 0 D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation 1 D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation 2 D51Y 800 Vertical Ring Rolling Machine Ring Rolling Height 200 Mm Stable Operation 3
Tags:

ring rolling mill,

ring rolling machinery,

ring rolling equipment
