D51Y Vertical Ring Rolling Machine Has Excellent Rigidity And A Wide Processing Range

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Model:
D51Y-550
Nominal Outer Diameter Of Grinding Ring:
550 Mm
Range Of Outer Diameter Of Rolling Ring:
350 - 600mm
Ring Rolling Height:
300mm
Cylinder Stroke:
150mm
Radial Rolling Force:
550KN
Product Description

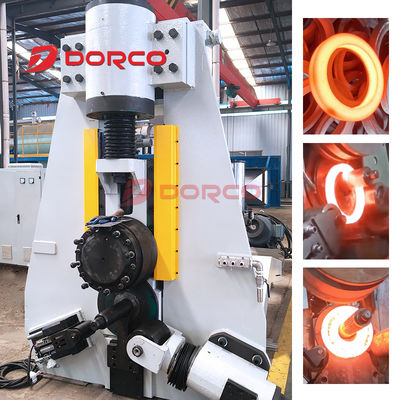

D51Y Vertical Ring Rolling Machine

This machine offers excellent rigidity and a wide processing range, featuring high automation, compact size, lightweight construction, and sensitive operation - making it ideal for small and medium-sized enterprises.

Key Specifications
Model D51Y-550
Nominal outer diameter of grinding ring 550 mm
Range of outer diameter of rolling ring 350 - 600mm
Ring rolling height 300mm
Cylinder stroke 150mm
Radial rolling force 550KN
Product Advantages
  • High automation enables increased production output per unit time
  • Quick response to market demands with efficient operation
  • Precision-engineered with carefully designed details and rigorous quality inspections
  • Smooth operation enhances production efficiency and environmental quality
  • Advanced ring expansion fixed rolling wheel system ensures high axial positioning accuracy
  • Reliable connection system reduces non-productive labor and improves productivity
  • Constructed with high-quality cast steel and alloy steel components
  • Welded steel plate construction provides excellent rigidity with lightweight design
  • Comprehensive pre-delivery testing ensures reliable performance
Technical Parameters
Model 160 250 350 450 550 800 1000 1200 1300
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling diameter range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Linear rolling speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder stroke (mm) 50 100 110 130 150 200 250 250 350
Applications

The DRC-D51Y vertical ring rolling machine is designed for hot rolling and expansion processes, ideal for manufacturing:

  • Non-welded ring parts including bearings and flanges
  • Large diameter flanges and small thin-walled barrel components
  • Various metal materials: high-temperature alloy steel, bearing steel, carbon steel, copper, and aluminum

The machine requires minimal front-end drilling, significantly improving production efficiency and product accuracy.

D51Y Vertical Ring Rolling Machine Has Excellent Rigidity And A Wide Processing Range 0 D51Y Vertical Ring Rolling Machine Has Excellent Rigidity And A Wide Processing Range 1 D51Y Vertical Ring Rolling Machine Has Excellent Rigidity And A Wide Processing Range 2 D51Y Vertical Ring Rolling Machine Has Excellent Rigidity And A Wide Processing Range 3
