Hydraulic Vertical Ring Rolling Machine Stable Operation High Production Capacity

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Application:
Metal Forging And Shaping
Model:
Multiple Specifications
Rolled Material:
High-temperature Alloy Steel, Bearing Steel, Ordinary Carbon Steel, Etc
Process Advantage:
One Round Rolling Forming
Warranty Period:
1 Year
Machine Main Drive:
Hydraulic
Product Description

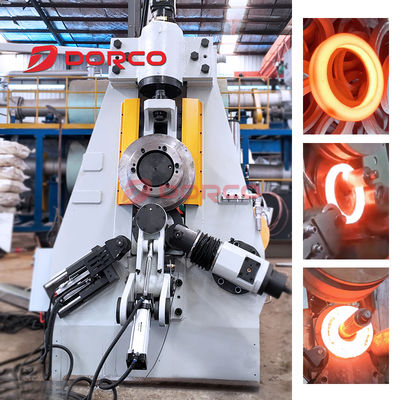

Hydraulic Vertical Ring Rolling Machine - Stable Operation High Production Capacity
Product Overview

The D51Y vertical ring rolling machine is a precision forging solution capable of shaping circular components including bearing rings, gear blanks, pipe flanges, and copper/aluminum parts in a single operation.

Key Specifications
Application Metal Forging And Shaping
Model Multiple specifications
Rolled Material High-temperature alloy steel, bearing steel, ordinary carbon steel
Process Advantage One Round Rolling Forming
Warranty Period 1 year
Machine Main Drive Hydraulic
Engineering Advantages
  • Novel structure incorporating user feedback and imported equipment advantages
  • Extended slider guide surface (5-6× stroke length) with rectangular cross-section for precise guidance
  • International standard cylinders with polyurethane YX sealing rings for reliable performance
  • Synchronous belt transmission for stable operation and wide adjustment range
  • Optimized spindle bearing configuration for high rotational accuracy
  • Wedge iron fixed lower support for easy maintenance and adjustment
  • Sealed lower support bearings for harsh environment operation
  • Compact reducer and motor configuration with noise-reduced compressed air release
Technical Parameters
Model DRC-D51Y(H) 160 DRC-D51Y(H) 250 DRC-D51Y(H) 350 DRC-D51Y(H) 450 DRC-D51Y(H) 550 DRC-D51Y(H) 800 DRC-D51Y(H) 1000 DRC-D51Y(H) 1200 DRC-D51Y(H) 1300
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling diameter range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Linear rolling speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder stroke (mm) 50 100 110 130 150 200 250 250 350
Industrial Applications

The D51Y series offers compact, energy-efficient solutions for hot rolling applications in:

  • Bearing forging industry
  • Automotive gear manufacturing
  • Flange production

Our compatible automated production line enhances efficiency while reducing labor costs and improving component quality.

Product Gallery
Hydraulic Vertical Ring Rolling Machine Stable Operation High Production Capacity 0 Hydraulic Vertical Ring Rolling Machine Stable Operation High Production Capacity 1 Hydraulic Vertical Ring Rolling Machine Stable Operation High Production Capacity 2 Hydraulic Vertical Ring Rolling Machine Stable Operation High Production Capacity 3
