D51Y Vertical Ring Rolling Machine Multiple Specifications Save Materials Energy

MOQ: 1 Set
Price: 25000 - 147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D51Y
Machine Main Drive:
Hydraulic
Good Rigidity:
Stable Operation Of The Equipment
Application:
Metal Forging And Shaping
Good Process Compatibility:
Capable Of Rolling Various Metal Materials
Model:
Flexible Selection Of Multiple Specifications
Process Advantage:
One Round Rolling Forming
Product Description
D51Y Vertical Ring Rolling Machine - Multiple Specifications for Material and Energy Savings
Key Attributes
Attribute Value
Machine Main Drive Hydraulic
Rigidity Excellent for stable equipment operation
Application Metal forging and shaping
Process Compatibility Capable of rolling various metal materials
Model Options Flexible selection of multiple specifications
Process Advantage One round rolling forming
Product Overview
The D51 Type Vertical Ring Rolling Machine is advanced forging automation equipment featuring a hydraulic main drive for efficient, precise operations. Offering multiple specifications for flexible customization to diverse production needs, this machine combines excellent rigidity for stable operation with the key process advantage of one-round rolling forming, enabling seamless material shaping in a single cycle. Delivering high performance, precision, and consistent output quality, it serves automotive, aerospace, construction, and other industrial applications.
Advanced Features
  • Novel, optimized structure incorporating user experience and imported equipment advantages
  • Extended slider guide surface (5-6 times stroke length) with rectangular cross-section for precise force distribution
  • International standard cylinder with polyurethane YX sealing ring for reliable, wear-resistant performance
  • Precision rolling mechanism with synchronous belt transmission for stable operation and wide adjustment range
  • Optimized spindle bearing selection and distribution for high rotational accuracy
  • Wedge iron fixed lower support in rectangular frame for easy adjustment and maintenance
  • Sealed lower support bearings for reliable operation in harsh environments
  • Compact standard reducer and Y-shaped motor configuration for easy installation
  • Muffler-equipped compressed air release for noise reduction
Technical Specifications
Model DRC-D51Y(H) 160 250 350 450 550 800 1000 1200 1300
DRC-D51Y(P) 160 250 350 / / / / / /
Nominal outer diameter (mm) 160 250 350 450 550 800 1000 1200 1300
Rolling diameter range (mm) 55-160 80-250 180-350 250-500 350-600 400-800 500-1000 600-1200 600-1300
Ring rolling height (mm) 40 130 160 230 300 200 200 200 300
Radial rolling force (KN) 50 150 300 500 550 550 800 800 800
Linear rolling speed (m/s) 2.5 1.8 1.5 1.5 1.3 1.37 1.3 1.3 1.3
Cylinder stroke (mm) 50 100 110 130 150 200 250 250 350
Industrial Applications
The DRC-D51Y vertical ring rolling machine is engineered for the hot rolling and expansion process of ring hair, extensively used in manufacturing non-welded ring components including bearings, flat welding flanges, large diameter flanges, and small thin-walled barrel parts. Its versatile design accommodates various metal materials such as high-temperature alloy steel, bearing steel, ordinary carbon steel, copper, and aluminum. With minimal front-end drilling requirements, this machine significantly enhances production efficiency and product accuracy.
Product Gallery

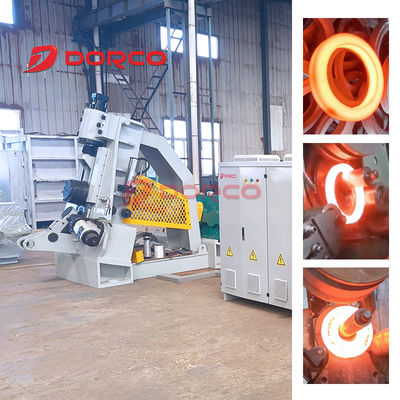

D51Y Vertical Ring Rolling Machine Multiple Specifications Save Materials Energy 0
D51Y Vertical Ring Rolling Machine Multiple Specifications Save Materials Energy 1
D51Y Vertical Ring Rolling Machine Multiple Specifications Save Materials Energy 2
D51Y Vertical Ring Rolling Machine Multiple Specifications Save Materials Energy 3
Tags:

ring rolling mill,

ring rolling machinery,

ring rolling equipment
