CNC Horizontal Ring Rolling Machine D53KF Series Dual Directional

MOQ: 1 Set
Price: 25000 - 493000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Brand Name
DORCO
Model Number
D53KTF
Model:
DRC - D53KF - 5000
Nominal Outer Diameter Of Grinding Ring(mm):
5000
Ring Rolling Height(mm):
80 - 800
Automatic CAR Operation Mode:
Automatically Matching The Radial And Axial Rolling According To The Rolling Curve
Highlight:
Multi Functional And Multi Station Rolling
Core:
Dual Directional Composite Rolling Function
Highlight:

CNC horizontal ring rolling machine

,

dual directional ring rolling machine

,

D53KF series rolling machine

Product Description
CNC Horizontal Ring Rolling Machine Dual Directional Composite Rolling Large Processing Range
Product Specifications
Attribute Value
Model DRC - D53KF - 5000
Nominal outer diameter of grinding ring(mm) 5000
Ring rolling height(mm) 80 - 800
Automatic CAR operation mode Automatically Matching The Radial And Axial Rolling According To The Rolling Curve
Highlight Multi Functional And Multi Station Rolling
Core Dual Directional Composite Rolling Function
Product Overview
The D53KF series ring rolling machine integrates machine, electrical, hydraulic, and instrumentation, adopts advanced CNC technology, and is controlled by an industrial computer to achieve automatic rolling cycles.
Key Features
  • Equipped with electronic handwheel operation, providing flexible and convenient control for the rolling process
  • Supports multifunctional and multi-station synchronous rolling, significantly improving production efficiency
  • Automatically generates precise rolling curves after inputting ring and blank dimensions
  • Simplified operation requiring only one electronic handwheel for complete rolling process
  • Dual-screen real-time display with modern control panel for clear operation monitoring
  • Automatic CAR operation mode ensures precise radial and axial rolling matching
Technical Parameters
DRC-D53KF 350 450 600 800 1200 1600 2000 2500 3500
Nominal outer diameter of grinding ring(mm) 350 450 600 800 1200 1600 2000 2500 3500
Range of outer diameter of rolling ring(mm) 160-350 180-450 200-600 300-800 300-1200 400-1600 400-2000 500-2500 700-3500
Ring rolling height(mm) 50-150 50-200 50-250 60-250 60-300 60-350 60-400 50-500 80-600
Radial rolling force(KN) 350 450 630 1000 1250 1600 2000 2500 3000
Axial rolling force(KN) 200 350 500 800 1000 1250 1600 2000 2500
Linear rolling speed(m/s) 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Radial motor power(Kw) 90 110 132 160 250 280 355 2*280 2*315
Axial motor power(Kw) 55 55 90 2*75 2*110 2*160 2*220 2*280 2*315
Overall dimensions(mm) 6750X2000X3400 6950X2150X3450 7050X2050X3500 8550X2250X3500 9050X2450X3550 11050X2550X3650 13050X3050X3850 14050X3550X4380 17050X3850X4550
DRC-D53KF 4000 5000 6000 6300 7000 8000 9000 10000 12000
Nominal outer diameter of grinding ring(mm) 4000 5000 6000 6300 7000 8000 9000 10000 12000
Range of outer diameter of rolling ring(mm) 800-4000 800-5000 800-6000 1000-6300 1000-8000 1100-8000 1100-9000 1200-10000 1500-12000
Ring rolling height(mm) 80-700 80-800 80-800 100-1000 100-1200 100-1600 110-1600 120-1650 130-2000
Radial rolling force(KN) 3000 3600 4000 5000 6300 8000 8000 10000 12500
Axial rolling force(KN) 2500 3000 3150 4000 5000 6300 6300 8000 10000
Linear rolling speed(m/s) 1.3 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4
Radial motor power(Kw) 2*350 2*450 2*550 2*630 2*730 2*800 2*900 2*1000 2*1250
Axial motor power(Kw) 2*350 2*450 2*550 2*630 2*730 2*800 2*900 2*1000 2*1250
Overall dimensions(mm) 18050X4250X4650 20050X5350X4750 21050X6550X5550 24050X6850X6550 26050X7550X7250 30050X8550X8050 36050X9050X8050 40050X9550X10050 48050X12050X11050
Applications
The D53KF series ring rolling machine is primarily used for processing high-quality seamless ring parts in aerospace, petrochemical, wind power, and other industries. It produces various ring forgings including bearing rings, gear rings, flanges, and wheel hubs.
Product Gallery

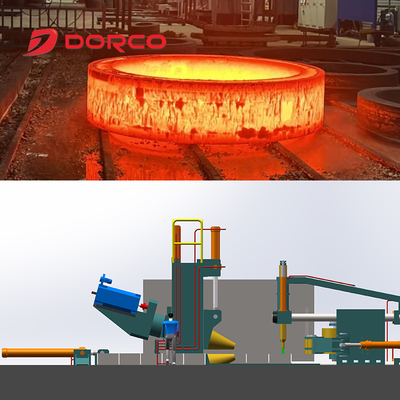

CNC Horizontal Ring Rolling Machine D53KF Series Dual Directional 0
CNC Horizontal Ring Rolling Machine D53KF Series Dual Directional 1
CNC Horizontal Ring Rolling Machine D53KF Series Dual Directional 2
