Horizontal Ring Rolling Machine Hydraulic Pneumatic D53KT Series

MOQ: 1 Set
Price: 25000 - 493000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Detail Information
Product Description
Detail Information
Brand Name
Duolek
Model Number
D53KT
Features:
High Precision, High Efficiency, Easy Operation
Model:
DRC - D53KT - 6000
Nominal Outer Diameter Of Grinding Ring(mm):
6000
Ring Rolling Height(mm):
80 - 800
Machine Main Transmission:
Hydraulic Or Pneumatic Device
Safety Features:
Emergency Stop Button, Safety Protection Device, Overload Protection
Highlight:

hydraulic horizontal ring rolling machine

,

pneumatic ring rolling machine

,

D53KT series ring roller

Product Description
Horizontal Ring Rolling Machine Hydraulic Pneumatic D53KT Series
Product Specifications
Attribute Value
Model DRC - D53KT - 6000
Nominal outer diameter of grinding ring (mm) 6000
Ring rolling height (mm) 80 - 800
Features High Precision, High Efficiency, Easy Operation
Machine main transmission Hydraulic Or Pneumatic Device
Safety features Emergency Stop Button, Safety Protection Device, Overload Protection
Product Description

The D53KT series CNC radial axial ring rolling machine produced by Duolek Heavy Industry is equipped with a high rigidity frame and intelligent CNC system, which can stably process large diameter and thick walled ring parts. It is compatible with various high-strength alloy materials, and the entire process from blank positioning to finished product verification is automated, significantly improving the efficiency and quality of large-scale ring production. It is suitable for key component processing in wind power, heavy industry and other fields, and its technical maturity and reliability have been verified through long-term engineering.

Key Features
  • Integrated Safety Systems: Emergency stop button with instant response, complete safety protection devices, and intelligent overload protection system that monitors running load in real time.
  • Multiple Specifications Available: Various models to suit different factory space layouts and production capacity needs.
  • User-Friendly Operation: Digital control panel with simple operation requiring only 2 electronic handwheels.
  • Material Versatility: Processes carbon steel, alloy steel, stainless steel, and rings with different cross-sectional shapes.
  • Data Management: Automatically records production logs, process parameters, and equipment status with historical data query capability.
Technical Parameters
DRC-D53KT 800 1200 1600 2000 2500 3500 4000
Nominal outer diameter of grinding ring (mm) 800 1200 1600 2000 2500 3500 4000
Range of outer diameter of rolling ring (mm) 300-800 300-1200 400-1600 400-2000 500-2500 700-3500 800-4000
Ring rolling height (mm) 60-250 60-300 60-350 60-400 80-500 80-600 80-700
Radial rolling force (KN) 1000 1250 1600 2000 2500 3000 3000
Axial rolling force (KN) 800 1000 1250 1600 2000 2500 2500
Linear rolling speed (m/s) 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Radial motor power (Kw) 160 250 280 355 2*280 2*315 2*355
Axial motor power (Kw) 2*75 2*110 2*160 2*220 2*280 2*315 2*355
Overall dimensions (mm) 8580X2280 X3500 9050X2450 X3550 11050X2580 X3680 13080X3080 X3880 14080X3580 X4380 17080X3880 X4580 18100X4250 X4650
DRC-D53KT 5000 6000 6300 7000 8000 9000 10000
Nominal outer diameter of grinding ring (mm) 5000 6000 6300 7000 8000 9000 10000
Range of outer diameter of rolling ring (mm) 800-5000 800-6000 1000-6300 1000-8000 1100-8000 1100-9000 1200-10000
Ring rolling height (mm) 80-800 80-800 100-1000 100-1200 100-1600 110-1600 120-1650
Radial rolling force (KN) 3600 4000 5000 6300 8000 8000 10000
Axial rolling force (KN) 3000 3150 4000 5000 6300 6300 8000
Linear rolling speed (m/s) 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4
Radial motor power (Kw) 2*450 2*550 2*630 2*730 2*800 2*900 2*1000
Axial motor power (Kw) 2*450 2*550 2*630 2*730 2*800 2*900 2*1000
Overall dimensions (mm) 20000X5380 X4780 21100X6580 X5580 24000X6880 X6580 26100X7550 X7250 30050X8550 X8050 36050X9050 X8050 40050X9550 X10050
Applications

Processing various specifications (outer diameter, height) of carbon steel, stainless steel, titanium alloy and other materials for ring components to meet the diverse needs of high-end fields such as wind power and aerospace.

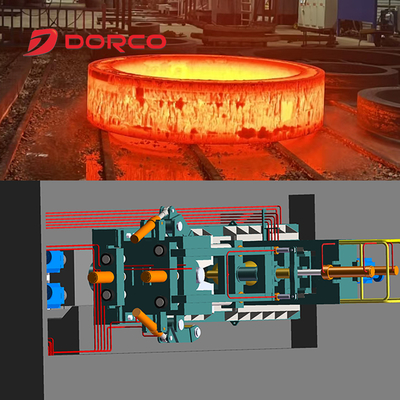

Horizontal Ring Rolling Machine Hydraulic Pneumatic D53KT Series 0 Horizontal Ring Rolling Machine Hydraulic Pneumatic D53KT Series 1 Horizontal Ring Rolling Machine Hydraulic Pneumatic D53KT Series 2
