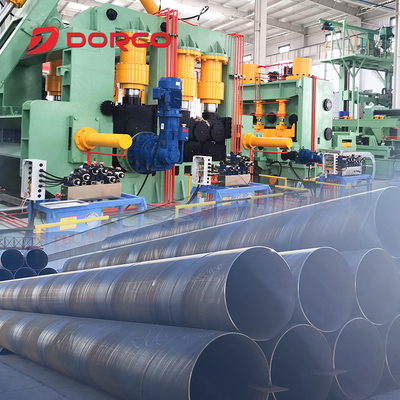

DRC-2400 X-ray Detection Spiral Weld Pipe Mill

MOQ:	1 Set
Price:	200000 - 1190000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45 - 75 Working Days
Payment Method:	,L/C,T/T

Details Information

Product Description

Detail Information

Brand Name

DORCO

Model Number

LXHGJ

Non Destructive Testing:

Ultrasonic Flaw Detector, X-ray Steel Pipe Testing

Model:

DRC - 2400

Specification(mm）:

φ 508 - φ2400

Raw Materials:

Undergo Strict Physical And Chemical Inspection

Fully Automatic Steel Pipe Water Pressure Testing Machine:

Pipe Diameter Range Is Φ 20- Φ 3500mm

Fully Automatic Flat Head Chamfering Machine:

Covering Steel Pipe Diameter: 20mm -3500mm

Highlight:

X-ray detection spiral weld pipe mill

DRC-2400 spiral pipe mill

industrial spiral weld pipe machine

Product Description

X-ray Detection Spiral Weld Pipe Mill DRC-2400

Product Attributes

Attribute	Value
Non destructive testing	Ultrasonic Flaw Detector, X-ray Steel Pipe Testing
Model	DRC - 2400
Specification(mm)	φ 508 - φ2400
Raw materials	Undergo Strict Physical And Chemical Inspection
Fully automatic steel pipe water pressure testing machine	Pipe Diameter Range Is Φ 20- Φ 3500mm
Fully automatic flat head chamfering machine	Covering Steel Pipe Diameter: 20mm -3500mm

Product Description

The spiral welded pipe unit is a standard finalized unit developed and improved by DORCO Heavy Industry based on foreign molding technology and adapted to Chinese manufacturing conditions. This unit represents DORCO Heavy Industry's most competitive and mature technical solution.

Key Features

Raw materials include strip steel coils, welding wire, and flux, all undergoing strict physical and chemical inspections before use
Strip steel ends connected via single/double wire submerged arc welding with repair welding post-rolling
Comprehensive pre-forming treatment including leveling, trimming, planing, and surface cleaning
Precision control via electric contact pressure gauges for smooth strip steel transportation
External/internal control roller molding options available
Advanced weld seam gap control for precise diameter and alignment
American Lincoln welding machines ensure stable welding quality
Air plasma cutting for precise pipe sectioning
Comprehensive quality control including mechanical testing, chemical analysis, and non-destructive evaluation

Technical Parameters

Model	Specification(mm)	Coil weight (ton)	Coil width(mm)	Thickness(mm)	Capacity(KW)	Area(m²)
DRC-400	φ219-φ426	10	400-750	5-8	150	18*72
DRC-500	φ219-φ529 φ219-φ720	15	400-800	5-10	180	18*72
DRC-600	φ219-φ630	15	450-1050	6-10	190	21*72
DRC-700	φ219-φ720	15	500-1250	5-12.7	210	21*72
DRC-800	φ219-φ820	20	500-1300	6-12.7	220	24*78
DRC-1000	φ219-φ1020	20	500-1560	6-12.7	220	24*78
DRC-1400	Φ325-φ1420	25	500-1560	6-18	400	24*120
DRC-1600	Φ426-φ1620	30	1100-1600	6-20	400	24*120
DRC-1800	φ508-φ1820	30	1200-1600	8-25.4	500	24*180
DRC-2000	φ508-φ2020	30	1200-2000	8-25.4	550	24*180
DRC-2400	φ508-φ2400	30	1200-2000	8-25.4	600	24*200
DRC-3000	φ508-φ3000	30	1200-2000	8-25.4	700	24*200

Applications

High/low pressure fluid transport: High strength construction withstands impact forces with smooth interior for efficient flow
Urban construction piles: Provides reliable structural support for building foundations and framing
Industrial structural pipes: Resistant to high temperatures and corrosion for demanding environments
Utility pipelines: Durable construction ensures long service life with excellent sealing for electricity, heat, and gas distribution

Support and Services

Our Spiral Weld Pipe Mill comes with comprehensive technical support and services to ensure optimal operation. Our expert team provides:

Professional installation assistance
Technical troubleshooting and repair services
Operator training programs
Maintenance guidance

We are committed to helping you maximize mill performance and maintain consistent, high-quality output.
