Automated Ring Rolling Machine 240 Pieces/h 5KG-10KG Forging

MOQ: 1 Set
Price: 14000-147000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Duolek
Name:
Automated Production Line Of Ring Rolling Machine Manipulator
Max. Output:
240 Pieces/hour
Forged Rings:
5KG-10KG
Performance Advantage:
Automatic Counting, Automatic Detection
Equipment Advantages:
Unmanned Automatic Operation
Equipment Size:
Customizable According To Model
Highlight:

automated ring rolling machine 240 pieces/h

,

ring rolling machine 5KG-10KG forging

,

industrial ring rolling machine with warranty

Product Description
High Precision Ring Rolling Machine Capacity Of 240 Pieces/h Auto Detection
The main components of the production line include a 650KW continuous induction heating furnace, a 400T closed press (three station design), and a 250E CNC ring rolling machine, each designed specifically for 5KG-10KG forging rings, with a maximum production capacity of 240 pieces/hour.
Core Performance Advantages:
  • Highly automated system with automatic counting, detection, weighing, and decoration, significantly reducing labor requirements
  • Energy-efficient operation with high precision and material savings, meeting modern green manufacturing standards
  • User-friendly interface with stable automated production and exceptional equipment durability
Complete Automation System Configuration:
  • Single axis robot with slide table for automatic feeding of heating furnace rod materials to the press
  • Four axis flat robot for three station workpiece flow within the press
  • Single axis robot with ejector mechanism for press unloading and material handling
  • Dual robot mobile platform for automatic loading/unloading of the ring rolling machine
  • KUKA 210 robot for automatic loading, unloading, and palletizing of ring components
  • Automatic waste conveying mechanism
  • Mold cooling and cleaning system
  • Raw material cooling conveyor line
  • Integrated stacking and pallet management system
The system features comprehensive real-time monitoring, production statistics, and equipment efficiency analysis, with clear production visualization through dashboard displays.

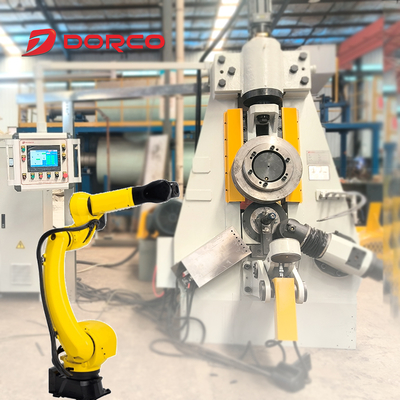

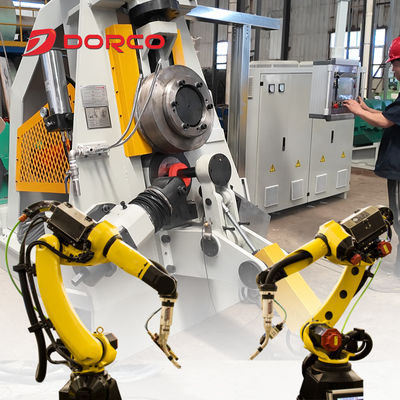

Automated Ring Rolling Machine 240 Pieces/h 5KG-10KG Forging 0 Automated Ring Rolling Machine 240 Pieces/h 5KG-10KG Forging 1
For more information about our automated ring rolling machine production line solutions, please contact us for detailed specifications and comprehensive service support.
