D53KT-7000 Horizontal Ring Rolling Machine 1000-8000mm Diameter

MOQ: 1 Set
Price: 25000 - 493000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45-75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Duolek
Model Number
D53KF
Model:
D53KT - 7000
Nominal Outer Diameter Of Grinding Ring:
7000 Mm
Range Of Outer Diameter Of Rolling Ring:
1000 - 8000
Equipment Size:
Customized According To The Model
Cooling System:
Water Cooling
Security Features:
Emergency Stop Button, Safety Protection Device, Overload Protection
Highlight:

Horizontal Ring Rolling Machine 1000-8000mm

,

D53KT-7000 Ring Rolling Machine

,

Horizontal Ring Roller with Warranty

Product Description
Automated Horizontal Ring Rolling Machine
High Quality Ring Forming with Flexible Production
The D53KT series CNC radial axial ring rolling machine, as a classic product of Duolek Heavy Industry, is specially developed for the rolling of large ring parts. It integrates radial and axial rolling functions, ensuring high precision and excellent quality of ring forming.
Technical Specifications
Model DRC-D53KT (800-4000mm)
Parameter 800 1200 1600 2000 2500 3500 4000
Nominal outer diameter (mm) 800 1200 1600 2000 2500 3500 4000
Rolling diameter range (mm) 300-800 300-1200 400-1600 400-2000 500-2500 700-3500 800-4000
Rolling height (mm) 60-250 60-300 60-350 60-400 80-500 80-600 80-700
Radial rolling force (KN) 1000 1250 1600 2000 2500 3000 3000
Axial rolling force (KN) 800 1000 1250 1600 2000 2500 2500
Linear rolling speed (m/s) 1.3 1.3 1.3 1.3 1.3 1.3 1.3
Radial motor power (Kw) 160 250 280 355 2*280 2*315 2*355
Axial motor power (Kw) 2*75 2*110 2*160 2*220 2*280 2*315 2*355
Overall dimensions (mm) 8580*2280*3500 9050*2450*3550 11050*2580*3680 13080*3080*3880 14080*3580*4380 17080*3880*4580 18100*4250*4650
Model DRC-D53KT (5000-10000mm)
Parameter 5000 6000 6300 7000 8000 9000 10000
Nominal outer diameter (mm) 5000 6000 6300 7000 8000 9000 10000
Rolling diameter range (mm) 800-5000 800-6000 1000-6300 1000-8000 1100-8000 1100-9000 1200-10000
Rolling height (mm) 80-800 80-800 100-1000 100-1200 100-1600 110-1600 120-1650
Radial rolling force (KN) 3600 4000 5000 6300 8000 8000 10000
Axial rolling force (KN) 3000 3150 4000 5000 6300 6300 8000
Linear rolling speed (m/s) 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4 0.5-1.4
Radial motor power (Kw) 2*450 2*550 2*630 2*730 2*800 2*900 2*1000
Axial motor power (Kw) 2*450 2*550 2*630 2*730 2*800 2*900 2*1000
Overall dimensions (mm) 20000*5380*4780 21100*6580*5580 24000*6880*6580 26100*7550*7250 30050*8550*8050 36050*9050*8050 40050*9550*10050
CNC System Core Functions
  • Dual electronic handwheel integrated control with digital operation interface for simplified operation
  • Real-time monitoring of rolling pressure, speed, temperature, and position with automatic alarms
  • High-precision collaborative rolling technology improves roundness, wall thickness consistency, and surface smoothness
  • Intelligent adaptive rolling process with automatic parameter adjustment and material compensation
  • Multi-material and multi-specification production capability (carbon steel, stainless steel, titanium alloy)
  • On-demand customization with personalized solutions and feature expansion
  • Comprehensive data traceability with automatic production record saving
  • Energy-saving control technology with servo drive and intelligent hydraulic systems
The D53KT series ring rolling machine has become the preferred equipment for large-scale ring manufacturing due to its excellent performance and stability.

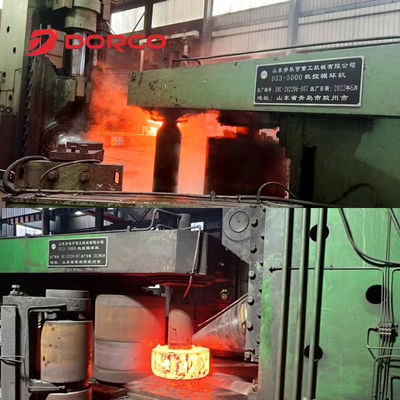

D53KT-7000 Horizontal Ring Rolling Machine 1000-8000mm Diameter 0 D53KT-7000 Horizontal Ring Rolling Machine 1000-8000mm Diameter 1
For more information about our Automated Horizontal Ring Rolling Machine, please contact us for detailed service and support.
