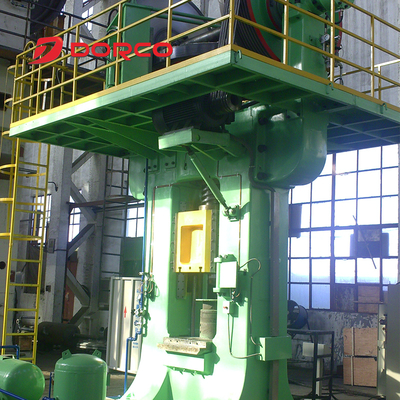

6300kN Double Disc Friction Press with 80kJ Striking Energy

MOQ:	1 Set
Price:	60000 - 480000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45 - 75 Working Days
Payment Method:	L/C,T/T

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Duolek

Model Number

Nominal Force:

6300kN

Sports Energy:

Maximum Stroke:

100mm

Power(w):

Total Weight:

≈42000kg

Stroke Times:

11min-1

Highlight:

6300kN double disc friction press

80kJ striking energy press

double disc friction ring rolling machine

Product Description

Sensitive Action Double Disc Friction Press With Pre Selected Striking Energy Simple Operation

This dual disc friction press offers exceptional versatility for diverse pressure processing needs including forging, bending, calibration, and precision pressing. An ideal solution for forging workshops in mechanical manufacturing, automotive, and aviation industries, it combines multiple advantages: diverse functionality, easy installation, reliable operation, and cost-effectiveness.

Technological Advancements

Advanced control: Machine electrical joint control with high sensitivity allows pre-setting of processing energy, ensuring reliable and consistent operation.
Braking safety: Equipped with translational braking device featuring strong braking force and rapid response for effective braking at any position.
Stable body: Combination design of integrated rack and pull rod provides exceptional stability and impact resistance.
Efficient transmission: Upgraded cylinder direct push control system drives spindle movement directly for more efficient power transmission and easier maintenance.

Technical Specifications

Nominal force	6300kN	Die height	470mm
Sports energy	80kJ	Thickness of workbench pad	180mm
Slide stroke	600mm	Motor power	55kw
Minimum sealing height	650mm	Top material method	Pneumatic top material
Stroke times	11min-1	Maximum top material force	100kN
Bottom size of slider (left/right)	700mm	Workbench dimensions (left/right)	820mm
Bottom size of slider (front/back)	760mm	Workbench dimensions (front/back)	920mm
Dimensions (L * W * H)	4910 * 3805 * 6060mm	Maximum stroke	100mm
Total weight	≈42000kg
