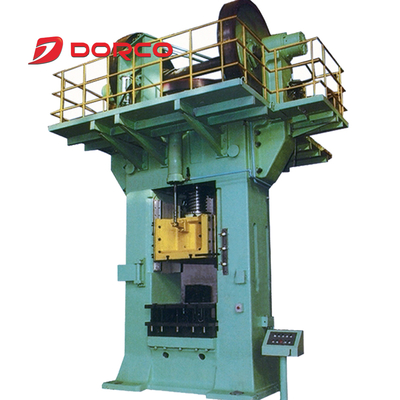

6300kN Double Disc Friction Press with 55kw Motor
  • Name
  • Name
  • Name
  • Name

6300kN Double Disc Friction Press with 55kw Motor

MOQ: 1 Set
Price: 60000-480000 USD Per Set
Standard Packaging: After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period: 45 - 75 Working Days
Payment Method: L/C,T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Duolek
Model Number
630D
Total Weight:
≈42000kg
Stroke Times:
11min-1
Maximum Stroke:
100mm
Power(w):
55kw
Dimension(l*w*h):
4910X38005X6060
Top Material Method:
Pneumatic Top Material
Highlight:

6300kN double disc friction press

,

55kw motor friction press

,

screw press forging machine

Product Description
Wide Applicability Double Disc Friction Press
Easy Installation | Reliable Operation
This universal forging equipment is suitable for various pressure processing applications, particularly in mechanical manufacturing industries. It performs multiple processes including forging, upsetting, bending, and correction. With its wide applicability, simple structure, easy installation, and cost-effectiveness, it's extensively used in forging workshops across machinery, automotive, tractor, and aviation industries.
Key Features
  • Intelligent Control: Integrated mechanical-electrical control system with sensitive response, stable operation, and pre-set strike energy
  • Strong Braking: Platform-fixed translational braking device provides large braking torque for safe, reliable operation with emergency stop capability at any position
  • Sturdy Construction: Integral frame design with tension rod pre-tensioning significantly enhances rigidity and strength
  • Direct Drive: Upgraded control system with two cylinders directly pushing the spindle for more efficient lateral motion
Structural Components
The machine consists of frame, transmission system, flywheel, slider, control system, brake, top material mechanism, air pipeline, centralized lubrication system, electrical components, and platform.
Technical Specifications
Parameter Value Parameter Value
Nominal force 6300kN Die height 470mm
Sports energy 80kJ Workbench pad thickness 180mm
Slide stroke 600mm Motor power 55kW
Minimum sealing height 650mm Top material method Pneumatic
Stroke times 11min-1 Maximum top material force 100kN
Slider bottom dimensions 700mm (LR) * 760mm (FB) Workbench dimensions 820mm (LR) * 920mm (FB)
Machine dimensions (L*W*H) 4910*3805*6060mm Maximum stroke 100mm
Total weight ≈42000kg
6300kN Double Disc Friction Press with 55kw Motor 0 6300kN Double Disc Friction Press with 55kw Motor 1
