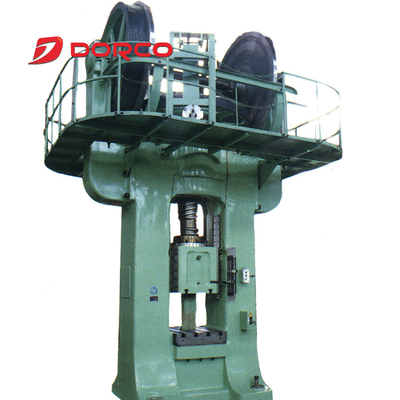

Dual Disc Friction Press 6300kN Force 55kw Motor

MOQ:	1 Set
Price:	60000 - 480000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45 - 75 Working Days
Payment Method:	L/C,T/T

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Duolek

Model Number

Maximum Top Material Force:

100kN

Die Height:

470mm

Maximum Stroke:

100mm

Power(w):

Total Weight:

≈42000kg

Top Material Method:

Pneumatic Top Material

Highlight:

6300kN dual disc friction press

55kw motor friction screw press machine

Dual Disc friction screw press machine

Product Description

Low Price Dual Disc Friction Press Auxiliary Equipment

Simple, Sensitive and Reliable Operation

In the mechanical manufacturing industry, friction presses are widely used for forging, upsetting, bending, calibration, precision pressing, and stamping operations.

Integrated mechanical, electrical, and pneumatic controls for sensitive and reliable operation with selectable strike energy
Innovative translational brake system fixed to the platform provides strong braking force and reliable instantaneous braking throughout the entire stroke
Integrated rack combined with pull rod structure enhances overall strength and equipment service life
Dual control cylinders directly drive the spindle, eliminating traditional shift forks for shorter transmission chain and more precise control

Structural Description

This machine consists of a frame, transmission, flywheel, slider, control, brake, top material, air pipeline, centralized lubrication, electrical components, and platform.

With its high versatility, simple structure, easy installation and operation, and low cost, this press is widely used in forging and die forging workshops across mechanical manufacturing, automotive, tractor, and aviation industries.

Double Disc Friction Screw Press Technical Parameters

Parameter	Value	Parameter	Value
Nominal force	6300kN	Die height	470mm
Sports energy	80kJ	Thickness of workbench pad	180mm
Slide stroke	600mm	Motor power	55kw
Minimum sealing height	650mm	Top material method	Pneumatic top material
Stroke times	11min-1	Maximum top material force	100kN
Bottom size of slider (left/right)	700mm	Workbench dimensions (left/right)	820mm
Bottom size of slider (front/back)	760mm	Workbench dimensions (front/back)	920mm
Dimensions (L * W * H)	4910 * 3805 * 6060mm	Maximum stroke	100mm
Total weight	≈42000kg
