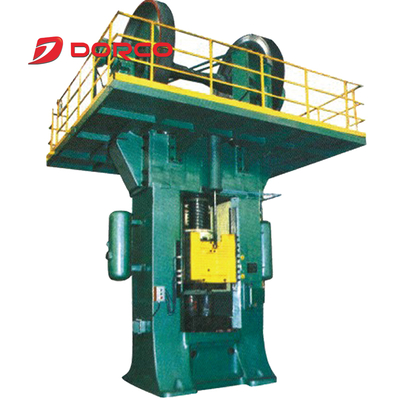

Double Disk Friction Screw Press 6300kN 55kw Forging Machine

MOQ:	1 Set
Price:	60000-480000 USD Per Set
Standard Packaging:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Delivery Period:	45 - 75 Working Days
Payment Method:	L/C,T/T

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Duolek

Model Number

Warranty:

1 Year

Weight:

≈42000kg

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Dimension(l*w*h):

4910X38005X6060

Power(w):

Product Name:

Double Disk Friction Screw Press

Highlight:

6300kN double disk friction screw press

55kw friction screw press forging machine

forging screw press Machine

Product Description

Versatility Double Disc Friction Screw Press

Easy To Operate, Sensitive And Reliable

This versatile pressure processing machine is widely used across multiple industries for forging applications. In mechanical manufacturing, it efficiently performs tasks including forging, upsetting, bending, calibration, precision pressing, and stamping operations.

With its high versatility, simple structure, easy installation, low operational requirements, and cost-effectiveness, this press is extensively utilized in forging and die forging workshops across mechanical manufacturing, automotive, tractor, and aviation industries.

Key Features

Combined mechanical, electrical, and pneumatic control system ensures sensitive operation and reliable performance with pre-selectable strike energy
Translational brake device fixed on the platform provides large braking torque, sensitive and reliable braking at any stroke position
Integral frame and pull rod structure delivers exceptional frame strength
Two-cylinder direct push control system replaces fork operation for improved responsiveness

Technical Specifications

Parameter	Value	Parameter	Value
Nominal force	6300kN	Die height	470mm
Sports energy	80kJ	Thickness of workbench pad	180mm
Slide stroke	600mm	Motor power	55kw
Minimum sealing height	650mm	Top material method	Pneumatic top material
Stroke times	11min-1	Maximum top material force	100kN
Bottom size of slider (L/R)	700mm	Workbench dimensions (L/R)	820mm
Bottom size of slider (F/B)	760mm	Workbench dimensions (F/B)	920mm
Dimensions (L * W * H)	4910 * 38005 * 6060mm	Maximum stroke	100mm
Total weight	≈42000kg
